Steel cylinder:
MODEL X

Home › Products › Short stroke compact hydraulic cylinders › FT-XT model X

Discover the other FT-XT models:

Non-magnetic standard cylinder (FT) and magnetic (XT)

FT Series: non-magnetic compact hydraulic cylinder;
XT Series: magnetic compact hydraulic cylinder;
The magnetic version (XT) includes slots for sensors;

ATTACHMENT VARIANT: a variant is selected depending on the position of the fastening holes:

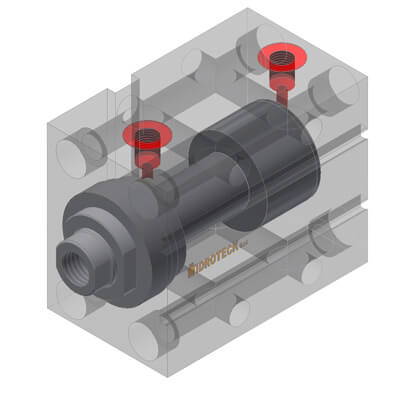

FT-XT model X

FT-XT modello X disegno tecnico

AL.	d	A+	B	C	Ch	D	E	F	G	H	I	L	M	N	O	P	Q	R	S	T	W
25	18	57	65	45	14	50	30	30	6,5	14	G1/4"	12	22	M10	32	10	8,5	2	37	30	24
32	22	60	75	55	18	55	35	34	8	15	G1/4"	12	22	M12	34	12	10,5	3	40	30	24
40	22	73	85	63	18	63	40	34	7	17	G1/4"	14	24	M14	37	12	10,5	3	43	35	30
50	28	75	100	75	24	76	45	42	8	20	G1/4"	16	25	M20	37,5	15	13	5	45	35	35
63	28	85	115	90	24	90	55	50	7	20	G3/8"	21	29	M20	47,5	15	13	5	55	40	35
80	36	100	140	110	32	110	75	60	7	20	G1/2"	25	35	M27	50	20	17	5	60	50	45
100	45	110	170	140	40	135	95	72	8	25	G1/2"	28	37	M33	60	20	17	5	70	60	55
